NEMA Electrical Panel Cabinet Heat Exchanger IP55 With DC Power

Name: NEMA Electrical Panel Cabinet Heat Exchanger IP55 With DC Power
Brand: Langji
Price: 100 USD

Best NEMA Electrical Panel Cabinet Heat Exchanger IP55 With DC Power wholesale

Brand Name : Langji

Model Number : HEX-150

Certification : ISO9001, ISO14001 CE, 3C, IP55

Place of Origin : China

MOQ : 1 pc

Price : USD 100~400/unit

Payment Terms : T/T, Western Union, L/C,PayPal

Supply Ability : 5000 pcs / month

Delivery Time : 15~25 working days

Packaging Details : Wooden case with pallet or just export pallet

Applicable Industry : Energy & Mining, telecommunication

Condition : New

Voltage : DC 48V

Dimension(L*W*H) : 481x195x1100mm

Product Name : cabinet heat exchanger

Cooling capacity : 150W/K

Rated power : 125W

IP Grade : IP55

Contact Now

NEMA DC Power Electrical Panel Cabinet Heat Exchanger

Introduction:

Panel cabinet heat exchanger is a device that introduces outdoor natual cold source to exchange heat with limited power consumption.When there is a large temperature difference btween the indoor and outdoor ,the device will effectively exchange heat between hot air inside and cool air outside the cabinet through the aisle of multilayer aluminum heat sink fins,which makes the cabinet be an enclosed system with constant temperature so that equipment inside the cabinet can work normally.


Product Parameters.

 	 			Model
 			HEX-150

 			AC Power
 			DC 48V

 			Rated Power(W)
 			125

 			Heat Transfer(W)
 			1500

 			Weight(kg)
 			28

 			Amient temp limits
 			-40℃~55℃

 			Color
 			RAL7035

 			IP Grade
 			IP55

 			Air Circuit(m³/h)
 			1300

 			Dimension(W*H*Dmm)
 			481*195*1100mm

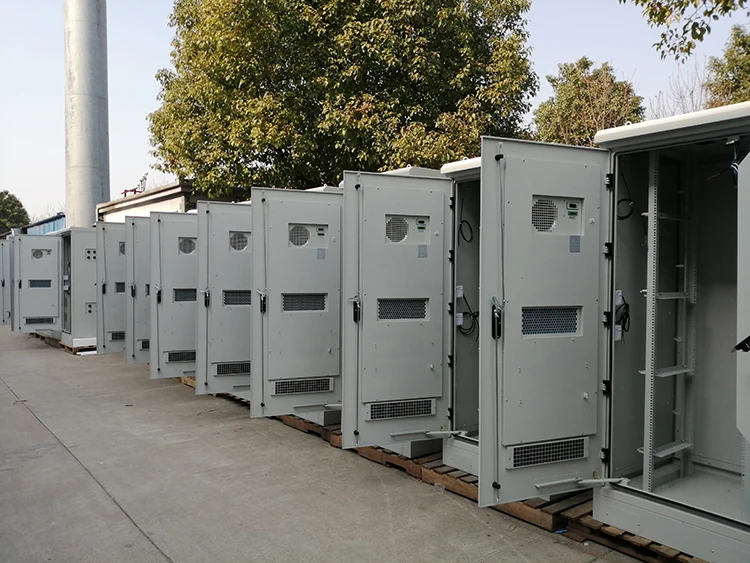

Product Details

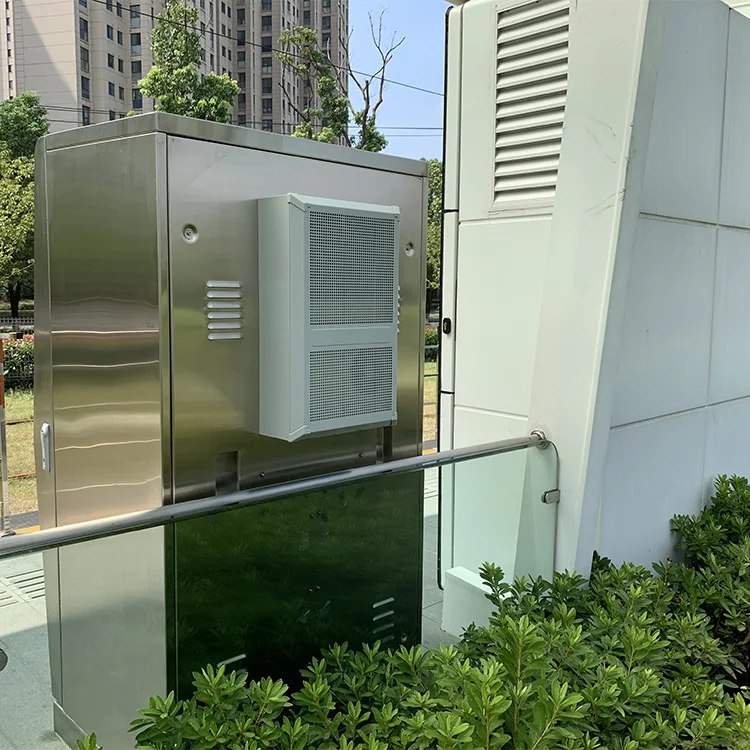

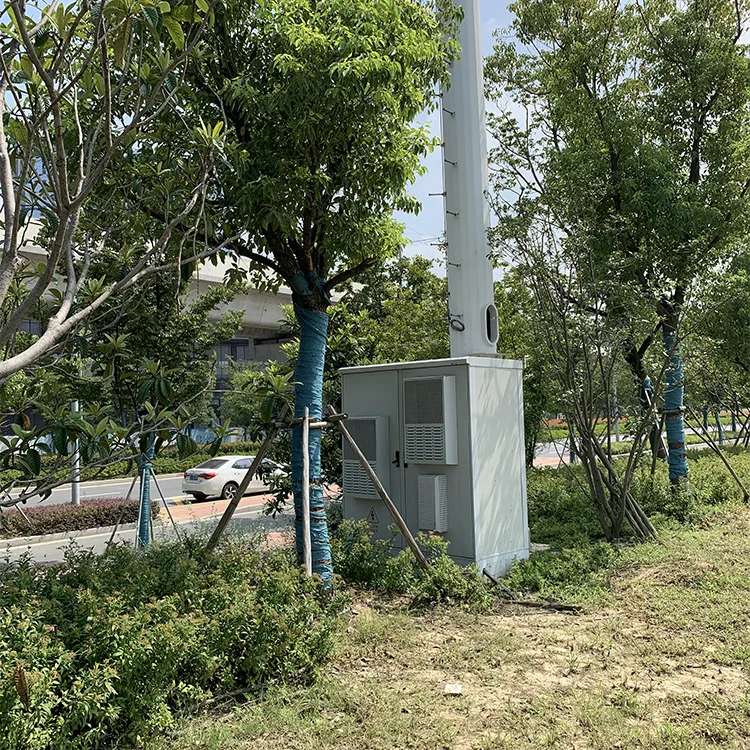

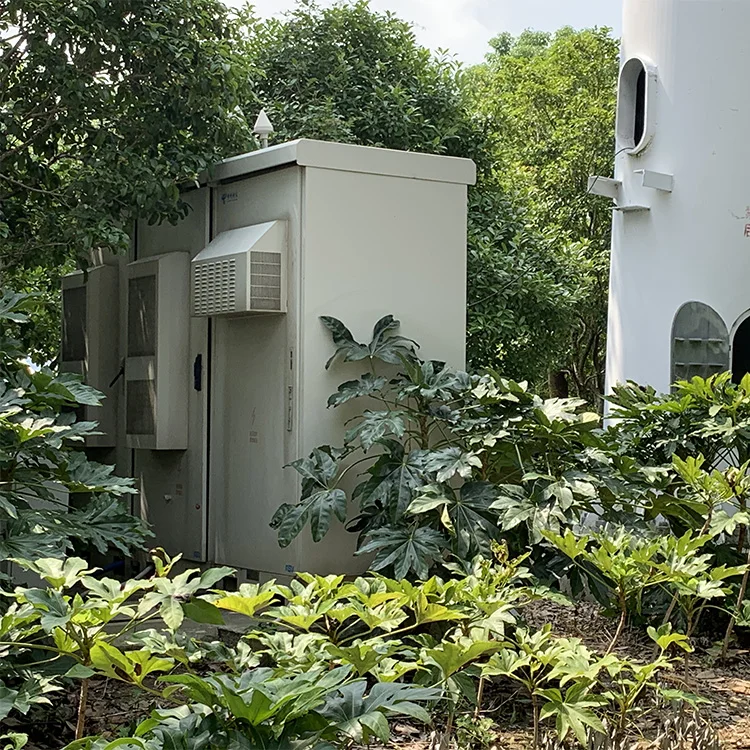

Product Application

Product Tags:

Cabinet Heat Exchanger IP55

DC Power Cabinet Heat Exchanger

125W Cabinet Heat Exchanger

NEMA Electrical Panel Cabinet Heat Exchanger IP55 With DC Power Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Suzhou Langji Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Model	HEX-150
AC Power	DC 48V
Rated Power(W)	125
Heat Transfer(W)	1500
Weight(kg)	28
Amient temp limits	-40℃~55℃
Color	RAL7035
IP Grade	IP55
Air Circuit(m³/h)	1300
Dimension(WHDmm)	4811951100mm
